| | Texas Instruments TMS1300
General
|
General Information
|
The TMS1300 is a 40-lead version of the TMS1100.
The TMS1300 also increases the "R" output lines from 11 to
13. |
Production
|
Early 1975 |
| Designers |
Unknown |
Architecture
| Type |
Data Word |
Address Space |
Clock |
Instructions |
Assists |
Reg's GP |
Reg's Math |
Reg's Index |
IO Ports |
Stack |
Interrupts |
Memory |
| PMOS, MCU |
4-bit |
1KB |
300Khz |
43 Standard Instructions & 1024 Micro-
instructions |
NA |
1 |
1 |
0 |
"K" Inputs 4 bits parallel,
"R" Outputs 13 lines / bits, "O" Outputs 8 bits
parallel |
1x10bits |
None |
ROM 2KB
RAM 64B
|
Packages
|
Package
|
Package
|
On-Chip Identification |
Picture |
General Comments
|
| TMS1300JLC |
White/Gold CerDIP, 40-lead
|
TMS1300JLC |
|
Suffix of C, L, P indicates temperature range (C=-12o5C
to 85oC, L = -0oC to 70oC) |
| TMS1300NLC |
Black Resin, 40-lead DIP
|
TMS1300NLC |
|
|
| TMS1300NLL |
Black Resin, 40-lead DIP
|
TMS1300NLL |
|
|

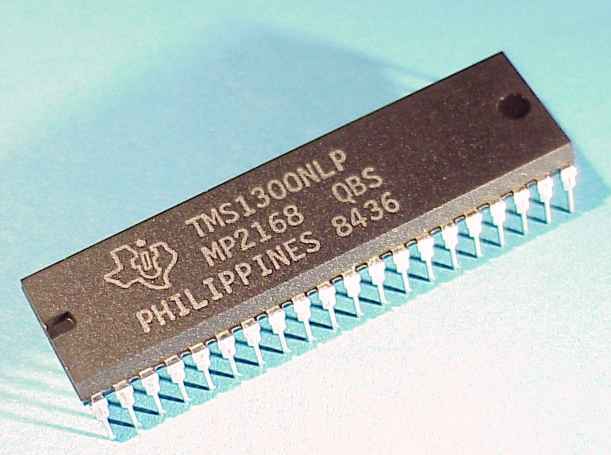

| TMS1300NLP |
Black Resin, 40-lead DIP
|
TMS1300NLP |
 |
|
