Intel 8008

General

General Information

The 8008 was the first 8-bit microprocessor. The 8008 was originally code named the 1201. The Intel 8008 was a microprocessor designed for use as a terminal controller for Control Terminal Corporation (CTC). The 8008 was to be single chip version of CTC’s CPU design, which was to be implemented as TTL logic chips. Work began on the 8008 before the 4004 and had circumstances been different the 8008 could have been the first microprocessor and not the 4004. The 8008 is architecturally very different than the 4004.

The 8008 was a very important transition CPU for Intel. The work on the 8008 enabled the creation of the powerful 8080 (which included the 8008 instruction set).

The 8008 family is also referred to as the MCS-8.

Production

April 1972

Designers Ted Hoff, Stan Mazor, Hal Feeney, Federico Faggin

Architecture

Type Data Word Address Space Clock Instruct- ions Assists Reg’s  GP Reg’s Math Reg’s Index IO Ports   Stack Interrupts Memory
PMOS,

CPU



8-bit 16KB 800kHz 48 NA 0 1 6 8-bit NA 7×14 Vectored, 8 Level NA

Packages

Chip Name

Package

On-Chip Identification


General Comments

C8008

Gray CerDIP, 18-pin

C8008

C8008

C8008-1

Gray CerDIP, 18-pin

C8008-1

C8008-1

D8008

Gray Ceramic, 18-pin DIP

D8008

D8008

D8008-1

Gray Ceramic, 18-pin DIP

P8008-1

D8008-1

8008 Pictures

C8008Chip C8008Close c8008hf C8008_Board

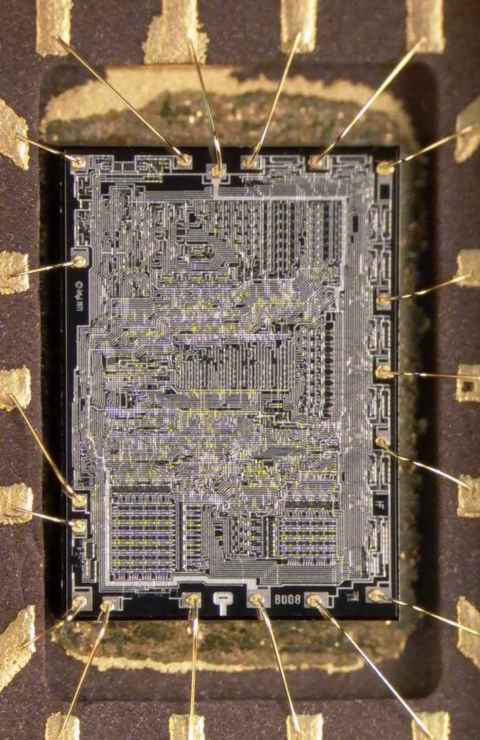

8008 chip mounted in “C” package 8008 Close-up Hal Feeney’s Initials 8008 CPU Board made by Speedway Ordering Systems, Inc (Robicon).

Related Chips

Related Chips

Intel 8080

Second Sources

Microsystems International, Inc., Siemens

Support Chips None
